NEW MASTER CYLINDERS
FOR REPLACEMENT / DISC BRAKE CONVERSION

These brand new Master Cylinders are a great idea for those with older cars who aren't specific about original parts and casting numbers. They are also essential to those considering converting to disc brakes. We have some cylinders that are year/make/model specific, and also several 'universal' units for those vehicles that are not as common.

Questions? Don't see the part you need? Contact us today!

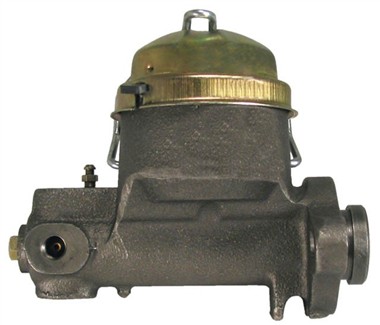

GM 1955-64 Single Bail - MC 2800

Licensed GM Restoration master cylinder. Single bail design.
- 1" bore
- 7/16-24 port
- Drum/drum applications

Exact copy of the original. 5lbs.

Fits GMs for the following years; 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964

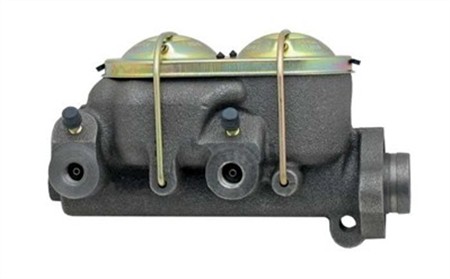

GM 1967-77 Dual Well - MC 2600

Licensed GM Restoration master cylinder. Includes casting numbers and bleeder screws as per the original. Dual well design.
- 1-1/8" bore
- Deep hole
- 9/16" and 1/2" ports on left side

Approximately 10lbs.

Fits GMs for the following years; 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

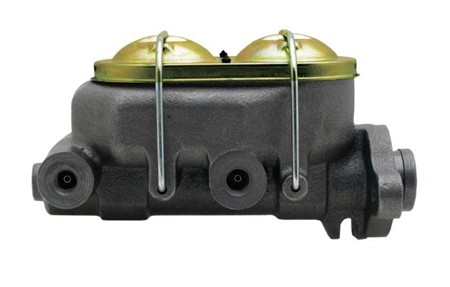

GM 1967-77 Dual Well - MC 2700

Dual well design. Exactly the same as our MC 2600 but without casting numbers and bleeder screws.
- 1-1/8" bore
- Deep hole
- 9/16" and 1/2" ports on left side

Approximately 10lbs.

Fits GMs for the following years; 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977

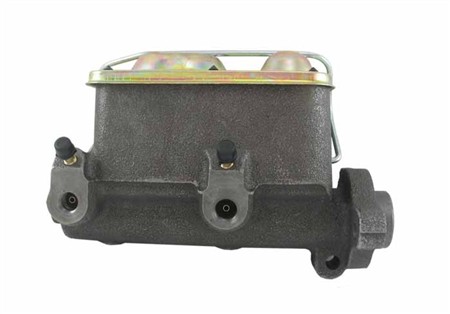

GM 1970-74 Single Bail - MC 2200
Single Bail design with casting numbers.
- 1-1/8" bore
- 9/16" and 1/2" ports on left side

Approximately 10lbs.

Fits GMs for the following years; 1970, 1971, 1972, 1973, 1974

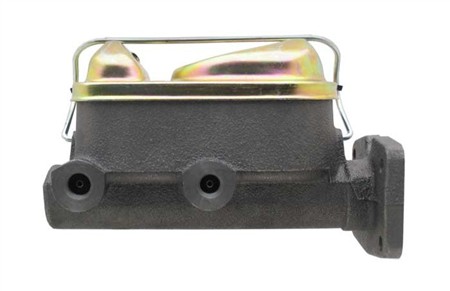

Mopar B-Body 1973-78 - MC 3200

Cast Iron Master Cylinder for power brake equipped cars.

- 1-1/8" bore
- 9/16" and 1/2" ports on left side

Approximately 10lbs.





Universal Double Bail (1-1/8" Bore) Master Cylinder - MC 2000
Also available in aluminium-chrome and aluminium-chrome flat-top style

Double bail design

- Cast Iron
- 1-1/8" bore
- 9/16" and 1/2" ports on left side

Approximately 10lbs.





Universal Double Bail (1" Bore) Master Cylinder - MC 2100
Also available in aluminium-chrome and aluminium-chrome flat-top style

Double bail design

- Cast Iron
- 1" bore
- 9/16" and 1/2" ports on each side

Approximately 10lbs.



Universal Double Bail (1" Bore) Master Cylinder - MC 3000


Double bail design

- Cast Iron
- 1" bore
- 9/16" and 1/2" ports on left side

Approximately 10lbs.




Questions? Don't see the part you need? Contact us today!
